Description

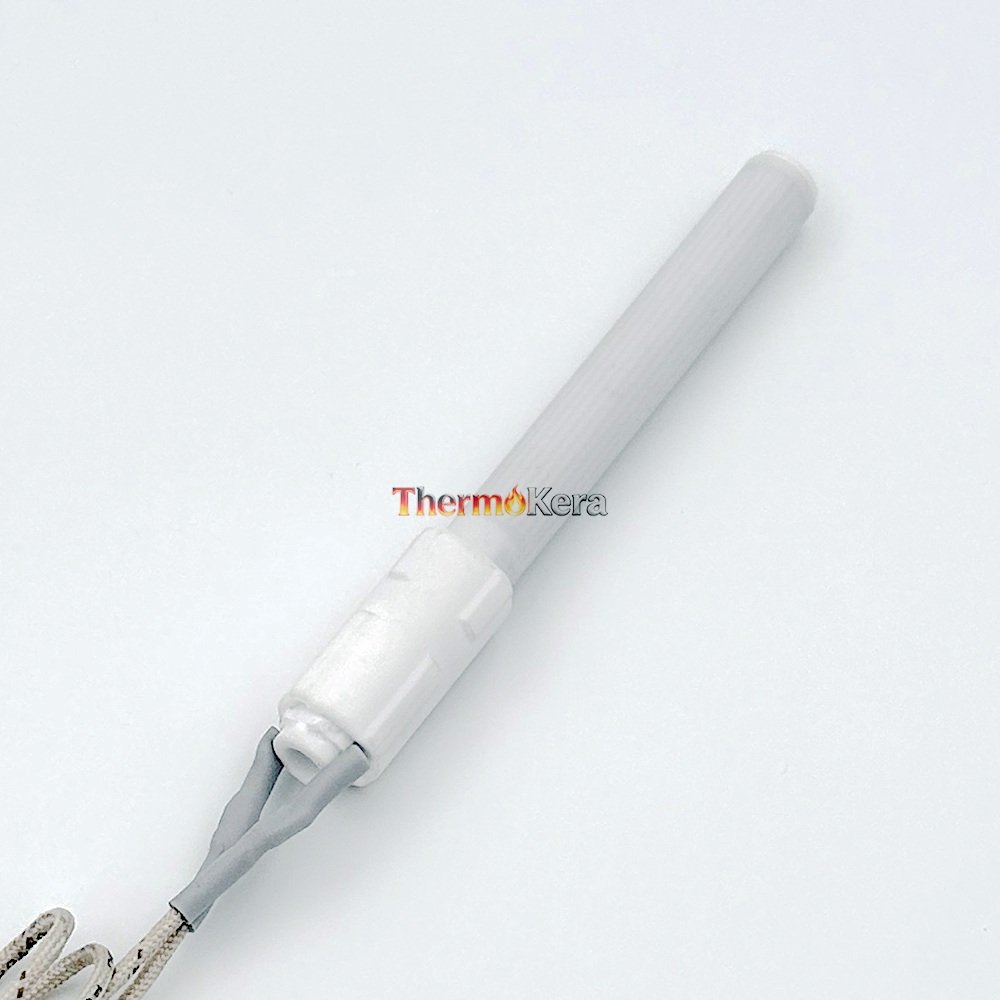

Ceramic Igniter BLK-2-300-W
White Ceramic Blow-Through Igniter for Wood Pellet & Biomass Systems
The BLK-2-300-W Ceramic Igniter 🔴 is engineered as a high-efficiency ignition component for modern pellet-fired and biomass-based heating systems.
Featuring a white ceramic heating element combined with a Ø17.7mm blow-through ceramic bushing, this model ensures reliable airflow-assisted ignition and consistent combustion startup.
Manufactured by ThermoKera, a professional ceramic igniter source factory, BLK-2-300-W is designed for OEM integration, long-term operation, and industrial-grade reliability, meeting the needs of global heating equipment manufacturers and distributors.
🔥 Core Advantages
🔥 White Ceramic Heating Element – Clean appearance, stable thermal characteristics
🔥 Blow-Through Ignition Design – Enhanced airflow improves ignition efficiency
🔥 High Operating Temperature – Sustains 1000–1050°C ignition zone
🔥 Stable Power Output – 300W class heating under AC 220–240V
🔥 Durability-Oriented Structure – Withstands frequent start-stop cycles
🔥 Proven Long Lifespan – Tested up to 100,000 ignition cycles
🔥 Industrial Alumina Ceramics – High-purity Al₂O₃ materials
🔧 Technical Specifications
| 🔥 Specification Item | 🔴 Value |
|---|---|
| Model | BLK-2-300-W |
| Igniter Type | Blow-Through Ceramic Igniter |
| Heating Element Color | White |
| Ceramic Bushing Diameter | Ø17.7mm |
| Heating Element Material | Metalized Alumina Ceramic (Al₂O₃ ≥92%) |
| Insulator Material | Alumina Ceramic (Al₂O₃ ≥95%) |
| Rated Power | 300W Class |
| Rated Voltage | AC 220–240V |
| Maximum Temperature | 🔥 1000–1050°C |
| Heating Speed | >820°C in 60 seconds |
| Cold Resistance | 40.15–49.13Ω @ 23°C |
| Inrush Current | ≤7.0A |
| Insulation Resistance | >50MΩ (DC 500V) |
| Lead Wire Heat Resistance | 180°C |
| Expected Service Life | Up to 100,000 cycles in endurance testing; application conditions affect service life |
| Structural Design | Blow-through ceramic flange |
🔥 Typical Applications
BLK-2-300-W ceramic igniter is suitable for:
🔥 Wood pellet stoves
🔥 Biomass boilers
🔥 Pellet combustion burners
🔥 Biofuel ignition systems
🔥 Industrial heating equipment
🔥 Renewable energy thermal systems
Especially recommended for systems using forced airflow ignition channels.
🏭 ThermoKera | Manufacturer, OEM & Wholesale Supply
As a ceramic igniter manufacturer and original factory, ThermoKera offers:
🔥 OEM / ODM ceramic igniter production
🔥 Factory-direct wholesale pricing
🔥 Engineering-level quality control
🔥 Custom structure, wiring & branding
🔥 Stable supply for global B2B customers
Trusted by pellet stove producers, biomass boiler manufacturers, and industrial heating solution providers.
❓ Frequently Asked Questions
🔥 Q1: What is the difference between BLK-2-300-W and BLK-2-300-B?
The only difference is the heating element color. BLK-2-300-W uses a white ceramic heating element, while BLK-2-300-B uses a black version. All specifications and performance remain the same.
🔥 Q2: Is BLK-2-300-W suitable for pellet stove replacement?
Yes. It is widely used as a direct replacement ceramic igniter in pellet stoves and biomass boilers.
🔥 Q3: Can this igniter be customized for OEM projects?
Yes. ThermoKera supports OEM customization, including wiring, labeling, and packaging.
🔥 Q4: What lifespan can be expected?
Under recommended conditions, the igniter supports up to 100,000 ON/OFF cycles.
🔥 Q5: Do you support bulk purchasing?
Yes. Wholesale pricing and long-term supply agreements are available.
