High-Efficiency Ceramic Igniter for Pellet Stoves, Biomass Boilers & Fireplaces

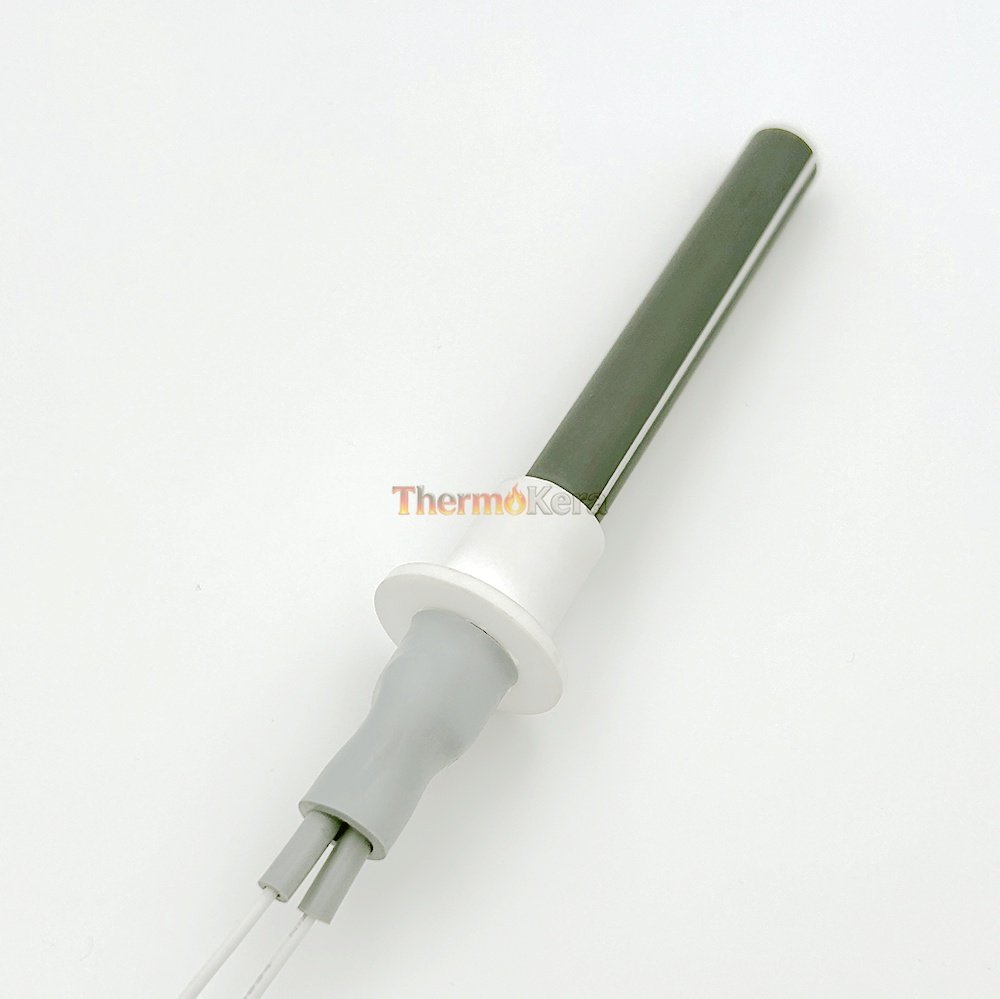

The BLK-1-300-B Ceramic Igniter 🔴 is designed for fast, reliable, and energy-efficient ignition in modern pellet stoves and biomass heating systems. Manufactured by a professional ceramic igniter manufacturer and source factory, this product is ideal for OEM equipment integration, replacement markets, and global wholesale distribution.
With precision laser-engraved tungsten wire and high-density alumina dielectric ceramic, the igniter delivers uniform heating, excellent thermal shock resistance, and long-term stability under frequent hot/cold cycles.
🔥 Key Features & Benefits
🔥 Fast Ignition Performance – Heats up to 1000℃ within 60–90 seconds
🔥 Extra-Long Service Life – Passed 90,000–100,000 cycle tests
🔥 Excellent Thermal Shock Resistance – Designed for frequent on/off ignition
🔥 Uniform Heating Output – Stable tungsten wire layout ensures consistent heat
🔥 Flexible Installation Options – Multiple flange types available
🔥 Industrial-Grade Reliability – Suitable for residential, commercial, and industrial heating systems
🔧 Technical Specifications
| 🔥 Specification | 🔴 Details |
|---|---|
| Model | BLK-1-300-B |
| Power Options | 150W / 200W / 250W / 300W (Customizable) |
| Voltage | 120V / 230V (Customizable) |
| Max Temperature | 🔥 Up to 1000℃ |
| Heating Time | ⏱ 60–90 seconds |
| Heater Material | Alumina dielectric ceramic |
| Flange Type | G3/8″ brass flange / ceramic flange / no flange |
| Flange Material | Brass or stainless steel, smooth chamfered finish |
| Lead Wires | 300mm glass fiber, heat resistance up to 180℃ |
| Printing | Power, voltage, logo (OEM supported) |
| Service Life | 90,000–100,000 cycles in endurance testing; application conditions affect service life |
| Manufacturing Process | Laser-engraved tungsten wire + ceramic sintering |
🔥 Applications
The BLK-1-300-B ceramic igniter is widely used in:
🔥 Pellet stoves
🔥 Pellet burners
🔥 Biomass boilers
🔥 Wood pellet heating systems
🔥 Fireplaces & biofuel fireplaces
🔥 Industrial biomass combustion equipment
🔥 Renewable energy heating systems
Ideal for OEM manufacturers, replacement igniter suppliers, and B2B distributors.
🏭 Manufacturer | OEM & Wholesale Supply
As a direct ceramic igniter manufacturer and source factory, we provide:
🔥 Factory-direct wholesale pricing
🔥 Stable mass production capacity
🔥 Strict quality control & lifecycle testing
🔥 OEM / ODM private label manufacturing
🔥 Custom power, voltage, flange & wire length
🔥 Long-term supply for global distributors
Perfect for pellet stove brands, biomass boiler factories, and heating equipment integrators.
❓ FAQ
🔥 Q1: Is this ceramic igniter compatible with most pellet stoves?
Yes. With multiple power, voltage, and flange options, it fits most mainstream pellet stoves and biomass boilers.
🔥 Q2: Can it replace traditional metal ignition rods?
Yes. Ceramic igniters offer faster heating, higher efficiency, and longer service life than metal igniters.
🔥 Q3: Do you support OEM and custom branding?
Yes. We offer OEM / ODM services, including logo printing, customized parameters, and packaging.
🔥 Q4: How long does the igniter last?
It has passed 90,000–100,000 ignition cycle tests, suitable for high-frequency use.
🔥 Q5: Is bulk or wholesale ordering available?
Yes. We support bulk orders, wholesale pricing, and long-term B2B cooperation.
